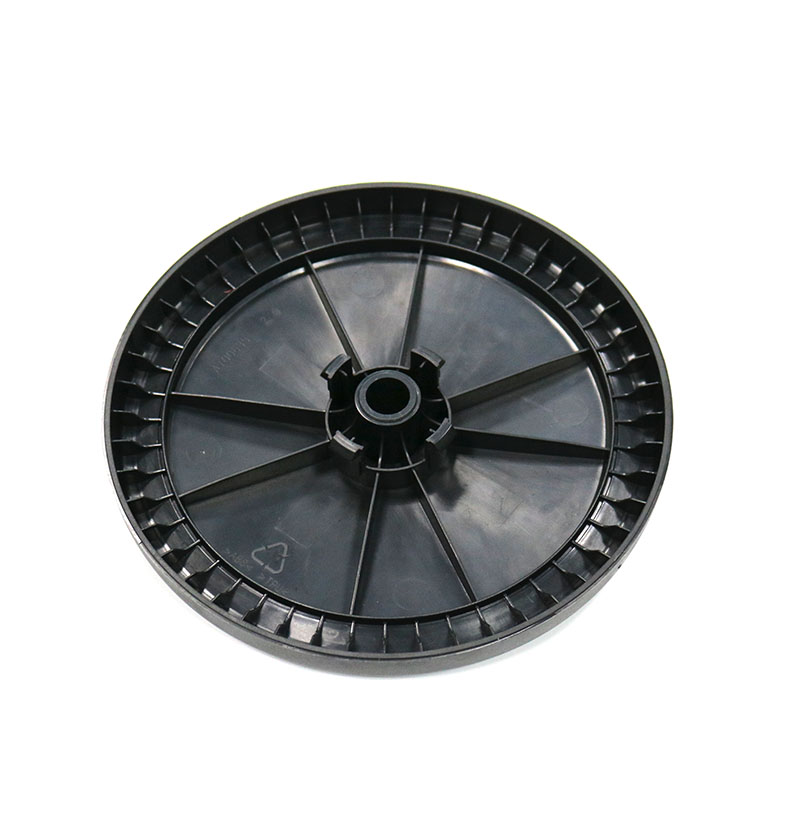

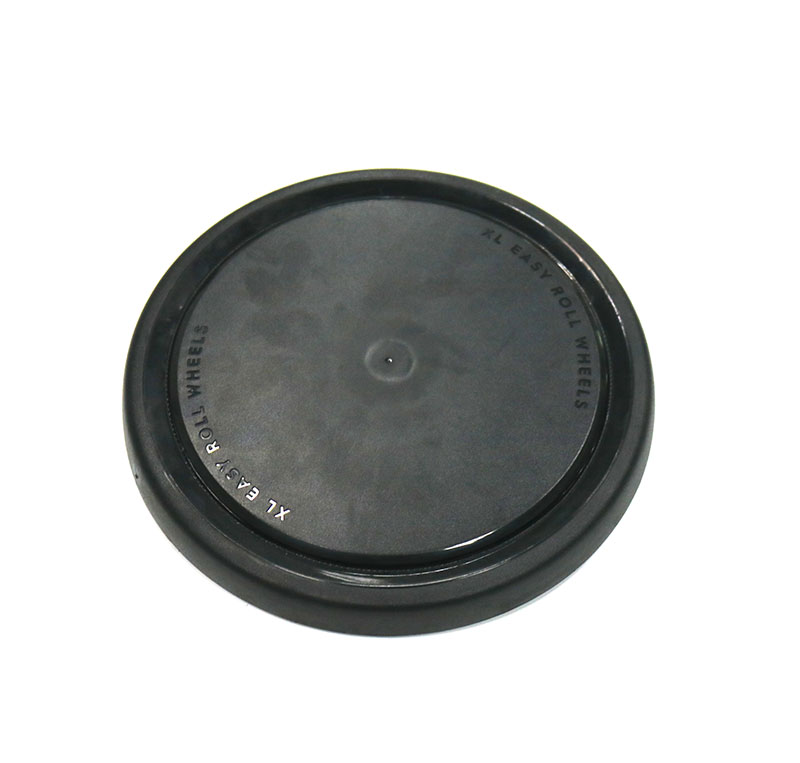

Single Cavity Plastic injection molding Plastic injection mold parts
| Part Material: | Normal Plastic: PP, PE, EVA, PS; Engineering Plastic: PA, PA6, PA66, PC+ABS, PA46, PA+60%GF, PC, ABS, POM,PBT,TUR; High Engineering Plastic: PEEK, PPS, PPO, PEI, PES, PLA, LCP, antistatic plastic, etc. |
| Part Size: | Min Size: 3 x 3 x 3mm Medium size: 400 x 300 x 250mm |
| Part Surface: | Polishing/smooth, texture/frosted, printing, painting, plating. |
| Part Color: | Nature, white, black, red, yellow, blue, green, as per your requirement. |
| Application: | Electronic&electrical parts,industrial parts, household products,medical device, petrochemical, chemical industry parts, neteork transmission equipment, power industry, auto parts, aerospace, home appliances, LED lamp parts, agriculture parts, etc. |
| Equipment: | 16 most advanced injection molding machines. |
| QC: | Callipers,Projector,etc. |
| Mold Material: | S136, SKD61, H13, SKD11, 2738, 718, etc, High hardness alloy steel with heat treatment, wear resistance, corrosion resistance. |
| Mold Base: | LKM, HASCO, DME, etc. |
| Mold Cavity: | Single-cavity or Multi-cavity, as per customer's requirement and part structure. |
| Mold Life: | 300,000 - 1,000,000 shots . |
| Runner: | Hot runner, Cold runner, as per customer's requirement and part structure. |
| Software: | UG, Proe, Solidworks, Autocad, etc. |
| Equipment: | CNC, EDM, precision grinder, milling machine, driller, wire cutting machine, etc. |
1. 3d Design/Samples for quotation: According to 3D drawing or samples for quotation.
2. Negotiations: Including the price of molds, molds sizes, material for cores & cavities, weight of the product, product color, payment, molds lifetime, delivery, etc.
3. Purchasing Order: After the customer confirming the mold design and quotation.
4. Making mold(mould): Confirm drawing, start to do DFM, mold flows and mold detail agreed with the customer, start production.
5. Production schedule: Every week we will feedback to the customer about the mold progress(picture).
6. Sample shoot: We provide the molds test samples for confirmation(about 10-15 pieces), we will start mass production when getting your signature samples.
· Design & Engineering
· Product design from concept
· Mold flow analysis & design for manufacturing(DFM).
· Mold design optimize.
· Prototyping
· 3D printing (SLA,SLS)
· CNC machining
· Rapid tooling within 2 weeks.
· MOLD/Tooling Making
· HASCO &DME standard, high quality export mold.
· Multi-cavity mold, up to 128 cavities.
· Multi components/shots mold, insert-mold, over-mold.
· 2 color mold,3 color mold
· Thread mold, stack mold and other complex structure mold
· Molding Production
· Injection molding, compression molding, die-casting
· Machine tonnage:50T-3600T
· Low & high volume production
· Second operation, Assembly
· painting line, part assembly
· pad printing, silk-screen printing and electroplating
· Delivery: EXW, FOB, CIF, DOOR TO DOOR
